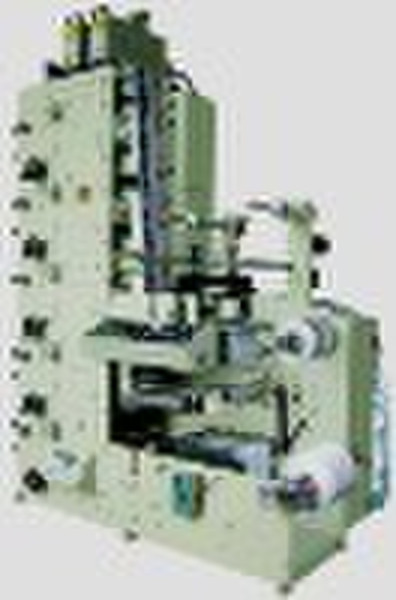

Flexographic printing machine

ZBS-320 flexographic printing machine : 1, Adopt the ceramic anilox cylinder to transfer the ink. 2, Unwinding and rewinding are controlled by magnetic power brake, clutch, (Or controlledbyauto tension controller of Mitsubishi of Japan). 3, Each printing unit adopts 360 degree plate-adjustment. 4, IR dryer for each printing unit.(UV dryer is for option) 5, This machine has die-cutting station, and it can make printing and die cutting finished in one process. 6, The ink rollers will be separated from the printing roller, and keep running when the machine stopped. 7, The main motor adopts imported frequency conversion stepless timing motor. 8, The machine can finish material-feeding, printing, lighting, drying, laminating, die-cutting and rewinding in a lump.It is an ideal machine for printing note and top-grade adhesive label. B.MAIN TECHNICAL SPECIFICATION Printing speed 50m/min Printing color 4-6colours Max. width of paper 320mm Max .printing width 310mm Max. unwinding diameter 600mm Max. rewinding diameter 600mm Printing length 175-320mm Precision of chromatography ±0.1mm Dimensions 2.0mX1.1m X2.6m Machine weight About 2200kg
